Description
The 2000W 12V Pure Sine Wave Inverter with Power Saving Mode (New Edition) is engineered to meet the rigorous demands of overlanding and off-roading enthusiasts. This inverter efficiently converts 12V DC battery power into clean, reliable 120V AC electricity, ensuring your essential devices and appliances operate seamlessly, even in remote locations.
Key Features:
- Continuous Output Power: 2000W
- Surge Rating: 4000W (1 second)
- Output Voltage: 120V AC ±10%
- Output Frequency: Configurable to 50Hz or 60Hz
- Output Waveform: Pure Sine Wave
- Total Harmonic Distortion (THD): < 3% for linear loads; < 5% for non-linear loads
- Inverter Efficiency: > 92%
- Full Load Efficiency: > 89%
- Power Consumption: < 10W
- ECO Power Consumption: < 5W

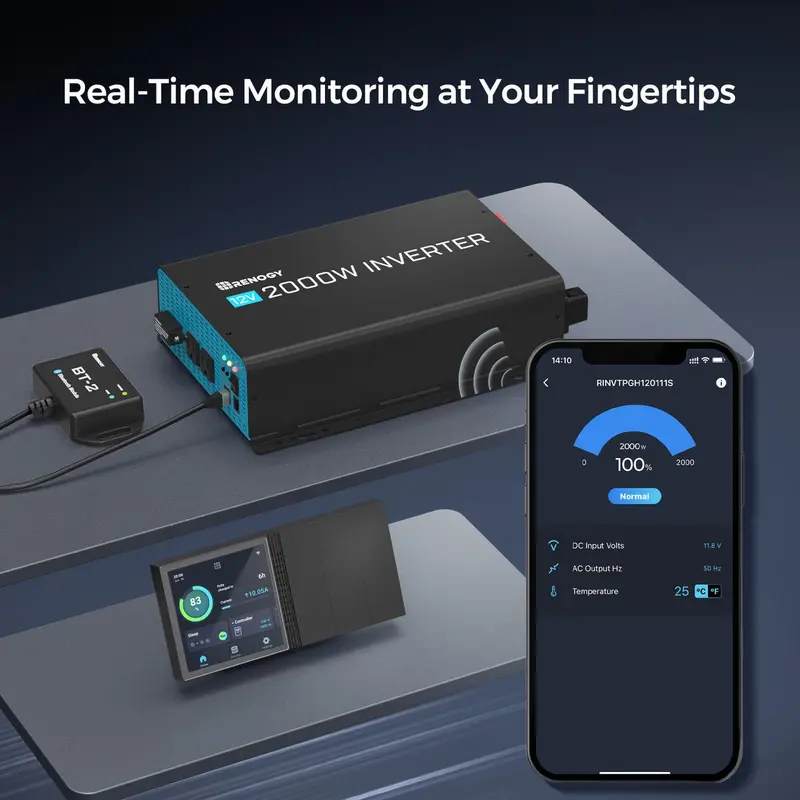

- Communication: RS485 interface for monitoring and control
- Cooling: Thermally controlled fans for optimal performance
Mechanical Specifications:

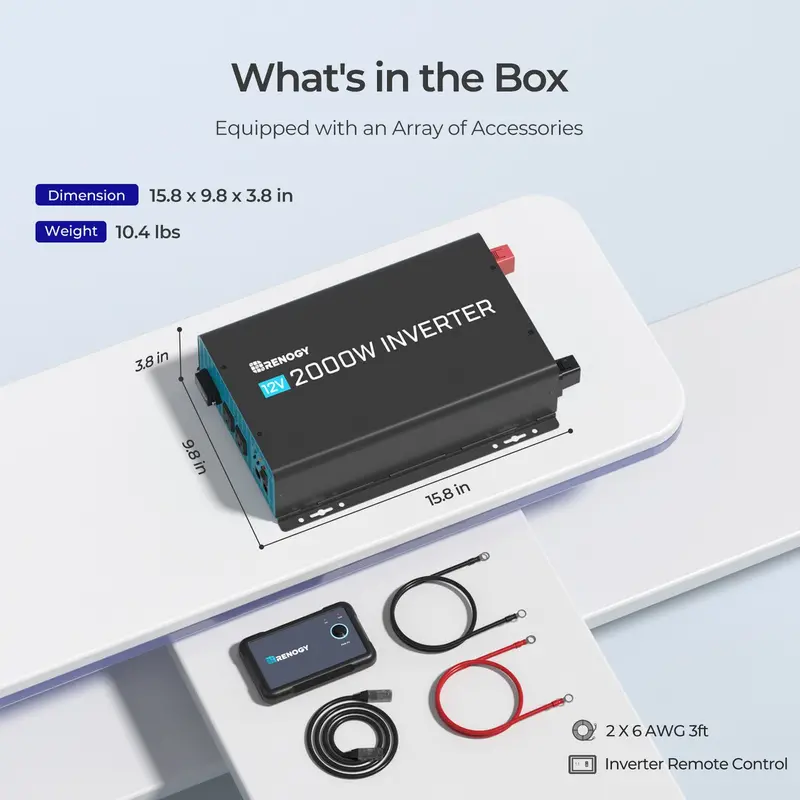

- Dimensions (L x W x H): 15.8 x 9.8 x 3.8 in (401 x 249 x 96 mm)
- Weight: 10.4 lbs (4.7 kg)
- Operating Temperature Range: -4°F to 104°F (-20°C to 40°C)
- Storage Temperature Range: -40°F to 158°F (-40°C to 70°C)
- Humidity: Up to 93%, non-condensing
Input Specifications:
- Rated Battery Input Voltage: 12V DC
- Battery Input Voltage Range: 11V DC to 16.5V DC
- Maximum Continuous Battery Input Current: 166.6A
- Battery Overvoltage Shutdown: 16.5V DC
- Battery Low Voltage Alarm: 10.5V DC
- Battery Low Voltage Shutdown: 10V DC
Output Specifications:
- Continuous Output Current: 8.3A AC

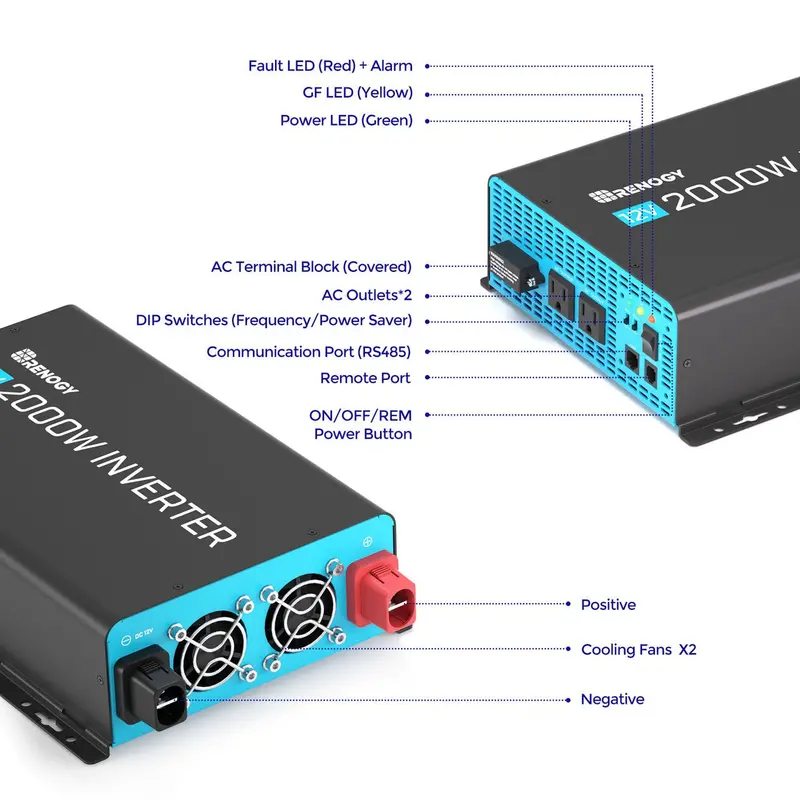

- AC Terminals: 2 x AC sockets plus terminal block
Accessories Included:
- Wired Remote Control:
- Overall Dimensions: 2.8 x 4.3 x 1.3 in (70 x 110 x 31.8 mm)
- Cable Length: 16.4 ft
Warranty:
- Material and Workmanship Warranty: 1 Year
Equip your vehicle with the 2000W 12V Pure Sine Wave Inverter with Power Saving Mode to ensure consistent and clean power supply during your off-road and overland journeys. Its robust design and high efficiency make it an essential component for powering your adventures.
